Hydrocolloid dressing machine

· Name of machine: hydrocolloid plaster forming and cutting machine

· Maximum die cutting speed: 3-10 meters/min

· Max width of materials: 320mm

· Die cutting length: 200-380mm

· Correction precision: ±0.15mm

· Maximum unwind diameter: 250-500mm

· Maximum die cutting width: 280mm

· Total power: 2.5Kw

Die cutting precision: ±0.3mm

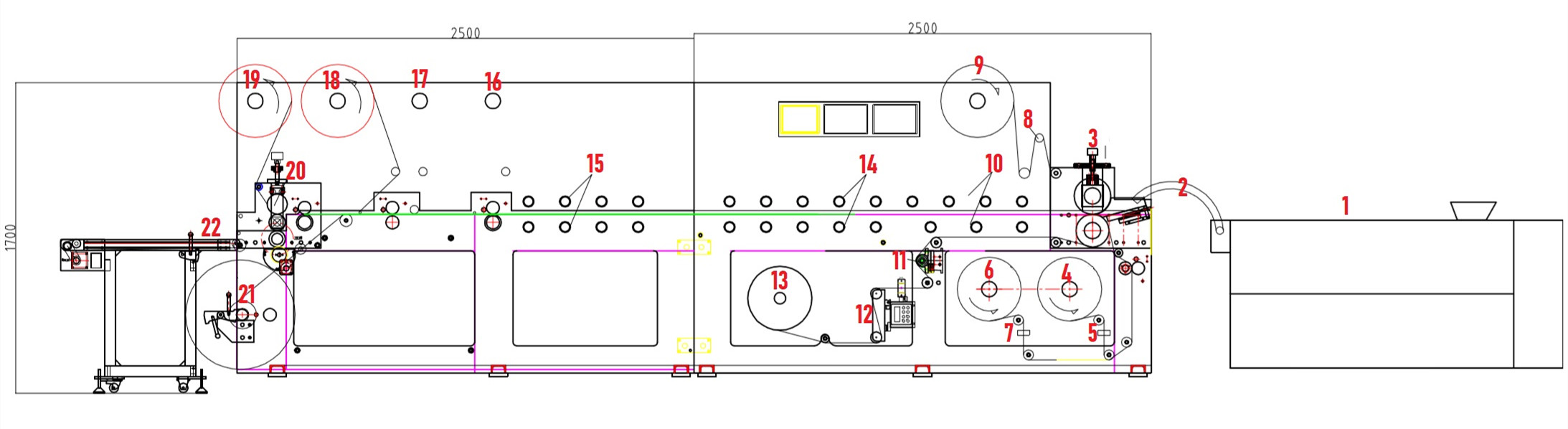

1. screw extruder

2. pipeline

3. carving roller

4. PET liner

5. correction controller

6. PET liner

7. correction controller

8. tension sensors

9. PE+PU unwind

10. wind blowing

11. tension sensors

12. correction controller

13. bottom release paper unwind

14. wind blowing

15. wind blowing

16. reserved rewind roller

17. reserved unwind roller

18. PE rewind

19. Scrap rewind after die cut

20. finished products die cut

21. finished products rewind

22. conveyor
